Catalog Number: CLSK1RCH
Finitura: POLISHED CHROME


  • Produces Large Opening While Utilizing Minimal Use of Floor Space

  • Natural Feeling Elliptical Door Swing Motion

  • Self-Closing and Self-Opening for Final 20 Degrees of Door Travel
  • An Ideal Choice for Enclosures Used by Physically Challenged Individuals
  • Can Also Be Used in 90 Degree and 135 Degree Fixed Panel Configurations

  • CLEAR SPACE™ is a State-of-the-Art Shower and Bath Enclosure system that is as functional as it is beautiful. An industry first elliptical door swing that gets out of the way, creating an open floor space on both sides of the enclosure! Large openings up to 72" (1.83 m) wide can result (based on a double door scenario), as the door projects only 10-1/2" (267 mm) into the enclosure, and 10-1/2" 16-1/2" (267- 419 mm) out from the enclosure, avoiding sinks, toilets, and shower valves in the open floor space. Natural pivot door operation enhances the user experience, producing door space efficiency, without a header! The Top Door Guide automatically rotates open against the interior wall when the door is operated. CLEAR SPACE™ is the perfect companion for assisting physically challenged individuals, because the distance that the door travels toward the wheel chair is drastically reduced, and this is very important when producing wide openings. Natural pivot door operation and assisted opening/closing further enhances ergonomics while assuring that the door stays put in both positions.



    CRL CLEAR SPACE™ Polished Chrome Complete Right Hand Swinging Kit





    Altri prodotti/finiture:

    NUMERO ARTICOLO DESCRIZIONE COLORE

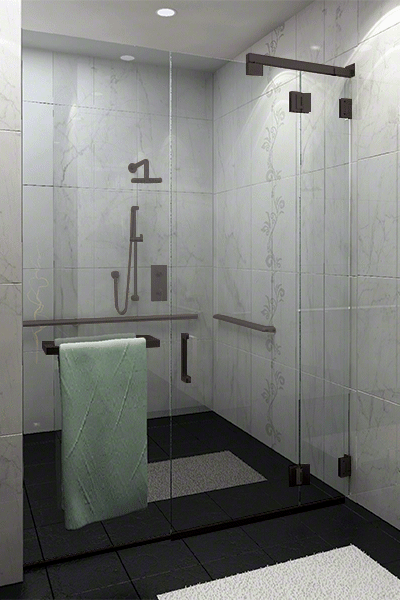

    CLSK1R0RB CRL CLEAR SPACE™ Oil Rubbed Bronze Complete Right Hand Swinging Kit

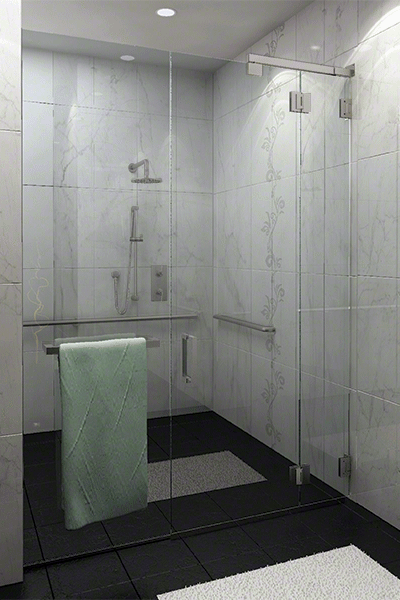

    CLSK1RBN CRL CLEAR SPACE™ Brushed Nickel Complete Right Hand Swinging Kit

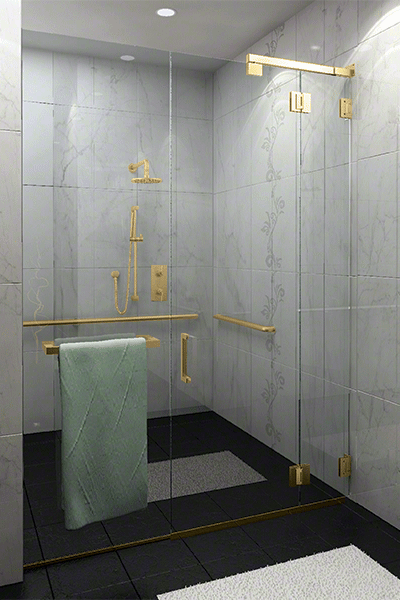

    CLSK1RBR CRL CLEAR SPACE™ Polished Brass Complete Right Hand Swinging Kit
    CLSK1RCH CRL CLEAR SPACE™ Polished Chrome Complete Right Hand Swinging Kit

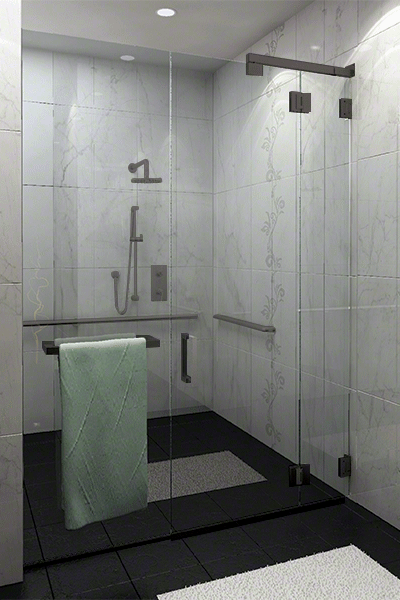

    CLSK1RMBL CRL CLEAR SPACE™ Matte Black Complete Right Hand Swinging Kit

    Numero articolo:CLSK1RCH
    Disponibile anche in questi cataloghi:
    This Item is Not Yet Shown in Any Printed Catalog.
    Colore:Polished Chrome
    Spedire via::Si può spedire con UPS

    FEATURES AND BENEFITS:
  • The perfect companion for assisting physically challenged individuals.
  • Produces large openings with minimal use of floor space.
  • Natural feeling elliptical door swing motion that does not move excessively towards the wheel chair.
  • Doors can be installed at both sides of an opening.
  • Can be configured with a pair of doors or with a fixed lite opposite the shower head.
  • Self-closing, self-opening for final 20 degrees of door swing.
  • Top Door Guide automatically hides and is unobtrusive at only 1-1/4” (32 mm) tall.
  • Many fixed lite configurations are compatible, like the ever popular 90 degree return and 135 degree neo angle.
  • Door swings inwardly with a normal pivoting action when a doorway jamb/stop is not used.
  • Compatible with bathtubs, raised curbs and flush floors
  • Available optional header (call for details).

    EACH CLEAR SPACE™ KIT CONTAINS:
  • Two – Wall Mount Hinges
  • Two – 180º Glass-to-Glass Hinges
  • One – Control Arm (Left or Right)
  • One – Top Guide
    NOTE: For enclosures requiring three Wall Mount and three 180º Glass-to-Glass Hinges, those third hinges must be purchased separately.

    SPECIFICATIONS:
  • Material: Solid Brass
  • Glass Thickness: 1/2" or 3/8" (12 or 10 mm)
  • Maximum Door Size:
    Using two hinges - 36" (914 mm) wide and 110 lbs (50 kg);
    Using three hinges - 36" (914 mm) wide and 140 lbs (63 kg)
    (Do not exceed either width or weight)
  • Glass Fabrication Required for Hinges and Top Guide
